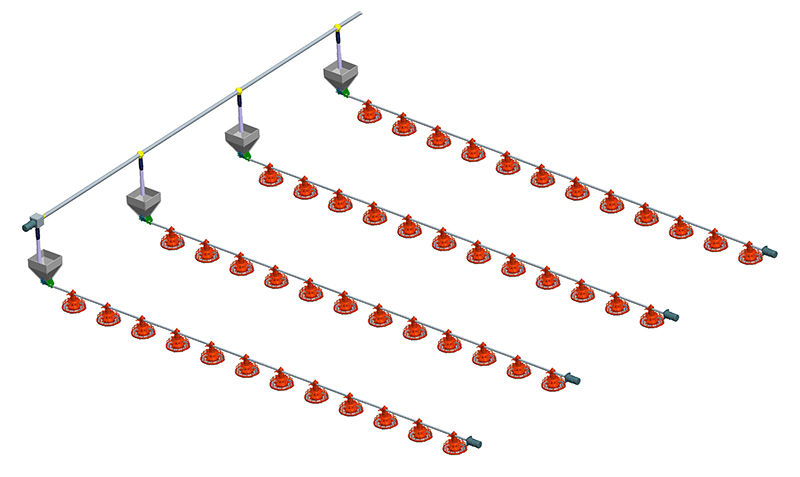

Meat poultry flat feeding and drinking line

Poultry flat feeding equipment is mainly used in poultry houses to realize automatic control of feed supply, drinking, lighting, ventilation, heating, humidification and other feeding operations, and achieve standardized and scaled rearing of broilers and ducks.

Product Video Brochure Download

Advantages

- Patented design of feed pan can adjust the amount of feed flexibly. Snap-on assembly structure is easy to install and disassemble.
- Feed pans are made of high-quality engineering raw materials added with anti-aging agent which has high strength and long service life.
- The plate in each pan can flexibly control the feed dropping;
- Motor parameters: three-phase drive motor, protection grade Ip55.
- Suspension mechanism: outer diameter: Φ45mm, thickness: 1.2mm, main bar: φ5mm hot galvanized steel wire rope, rope: stainless steel wire rope with winches realize the lifting of feed lines.
- Main feed pipes: 4-hole and 3-meter or 3-hole and 3-meter pipes are available with auger imported from South Africa which are with good wear resistance and long service life.
- Feed hopper: 110L and 220L are available.
- Sensor arrangement: multiple detection points on one single line realize automatic feed shortage protection, full feed detection, motor failure detection and feed level control for brooding.

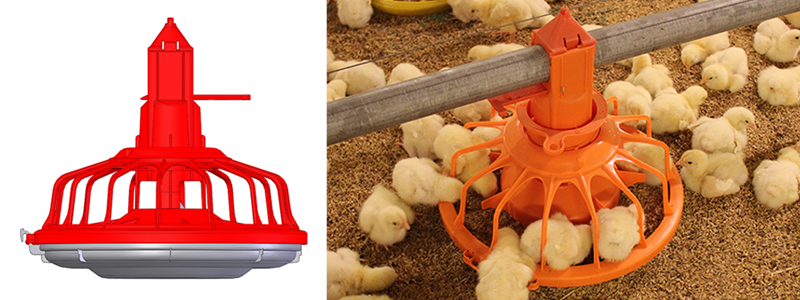

Broiler Feed Pan

- Birds per Pan:150kg/30-60 birds(2.5kg/bird)
- Feed Supply Speed: 0.6T/h
- Outer Diameter: 330mm
- Auger Model: 20／073
- Motor Power: 0.55kW

Advantages

- 14 feeding positions of a single feed pan suitable for both day-old chicks and grown up chicks.

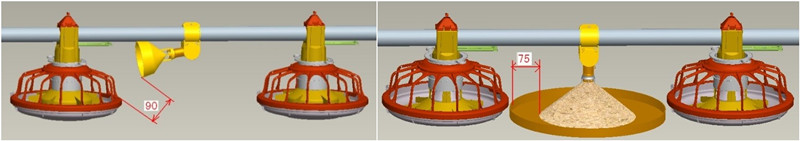

- During brooding period, the feed pan can land on the ground making the feed gathering at the out rim of the pan for the day-old chicks to eat.
- Brooding pans are optional: generally 1 set of brooding pans in every 3 meters.
- Snap-on connections between underpan and shell make the open and close of underpan with one hand possible and more convenient.

Cock Feed Pan

- Birds per Pan: 8-10
- Feed Supply Speed: 0.6T/h
- Outer Diameter: 330mm
- Auger Model: 20/073
- Motor Power: 0.55kW

Advantages

- 5 feeding positions per pan suitable for both day-old cocks and grown up cocks.
- Enlarged feeding window make the eating more comfortable and convenient.

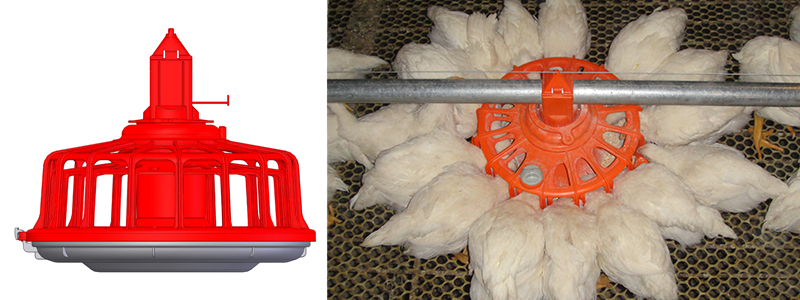

Hen Feed Pan

- Birds per Pan: 12-14
- Feed Supply Speed: 1T/h
- Outer Diameter: 380mm
- Auger Model: 20／070
- Motor Power: 0.37kW

Advantages

- 16 feeding positions of a single pan suitable for both day-old hens and grown up hens.
- Patented design: the feed supply can be adjusted flexibly. The stair-type and inner and outer pan designs satisfy the need of chicks of every age.
- Snap-on connection between underpan and shell make the opening and close of underpan with one hand possible and more convenient.
